CMP planetary concrete mixer principle and model

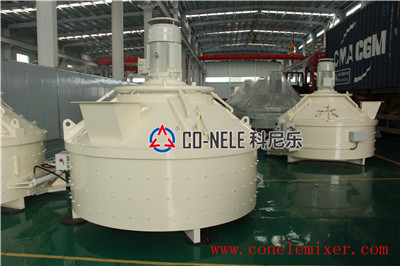

CMP planetary concrete mixer principle

CMP planetary concrete mixer is suitable for efficient and homogeneous mixing of all high-quality concrete (dry hard, semi-dry hard and plastic concrete). It can be used not only for mixing concrete, but also for glass, ceramics, refractory materials, artificial marble, manganese slag treatment, solid waste treatment, etc.

The mixing device designed by CO-NELE makes the mixing speed faster and the mixing more uniform;

The mixing blade is more resistant to wear;


The developed gearbox can effectively distribute the power balance to each mixing device to ensure the low-noise operation of the mixer, even under harsh production conditions;

The large-sized maintenance door of the mixer is convenient for maintenance and cleaning;

CO-NELE mixer manufacturers provide a full range of technical support and protection from model selection to customization for special applications.

CMP planetary concrete mixer type

CMP50 CMP100 CMP150 CMP250 CMP330 CMP500 CMP750
Output capacity(L) 50 100 150 250 330 500 750
Input capacity(L) 75 150 225 375 500 750 1125
Output mass(Kg) 120 240 360 600 800 1200 1800
Mixing power(Kw) 3 5.5 7.5 11 15 18.5 30
CMP1250 CMP1500 CMP2000 CMP2500 CMP3000 CMP4000 CMP4500
Output capacity(L) 1250 1500 2000 2500 3000 4000 4500
Input capacity(L) 1875 2250 3000 3750 4500 6000 6750
Output mass(Kg) 3000 3600 4800 6000 7200 9600 10800
Mixing power(Kw) 45 55 75 90 110 160 200
