CO-NELE Has Obtained More Than 80 National Technology Patents & More Than10,000 Mixers.

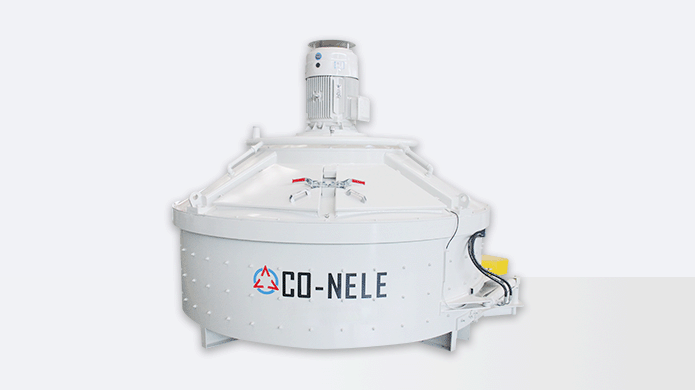

Refractory planetary mixer

Co-nele supplier's planetary mixers are used to efficiently mix various refractory materials and casting materials. This refractory mixer machine for abrasives are designed and developed to produce a homogeneous mixture in a short mixing time.


Co-nele is a professional refractory mixer manufacturer with 26 years of industry experience

Co-nele supplier's planetary mixers are used to efficiently mix various refractory materials and casting materials.

Advantages of refractory mixer

This refractory mixer machine for abrasives are designed and developed to produce a homogeneous mixture in a short mixing time.

It uses planetary mixing to effectively mix refractory materials. It applies high-efficiency technology in the mixing machinery industry and continuously develops and produces refractory brick refractory materials and stamping materials.

The refractory mixer enables the powder to move fast under the action of external force, with strong mixing performance and rapid mixing between materials.

Different parameters and models of refractory mixing equipment can be used to mix materials of different capacities.

Refractory planetary mixer date

TypeCMP100CMP150CMP250CMP330CMP500CMP750CMP1000CMP1500
Output capacity(L)10015025033050075010001500
Input capacity(L)150225375500750112515002250
Mixing power(Kw)5.57.5111518.5303755




Product Component Gallery

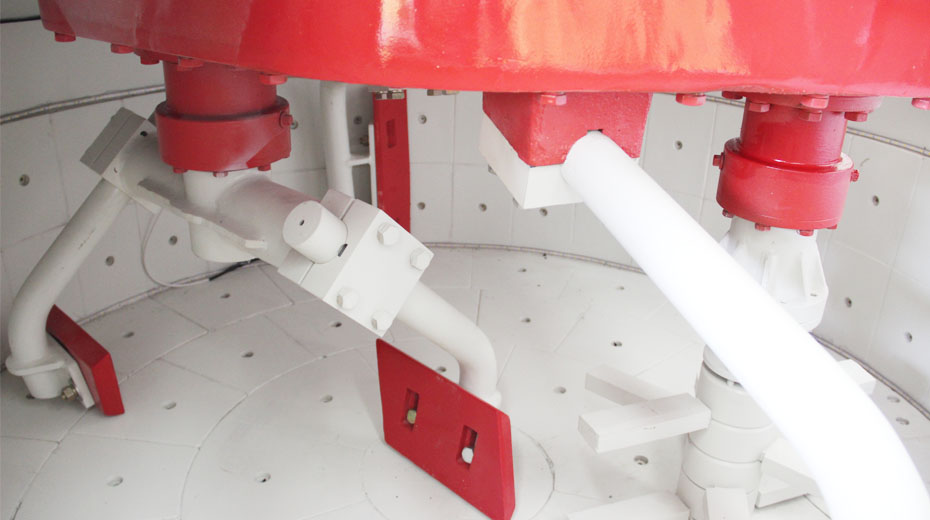

Mixing Device Of Planetary Fly-cutter Mixer

Planetary mixer with fly cutter,The speed of the flying cutter reaches 200r/min or more,Due to high speed and high homogeneity of mixing, avoid material pilling on the production of block bricks.

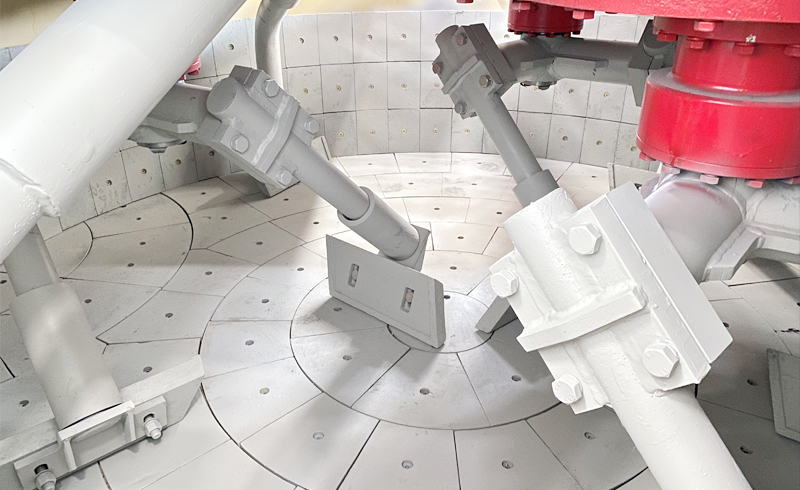

Planetary Mixing Device


Compulsory mixing is realized by composite moves of extruding and overturning driven by rotating planets and blades.

Mixing blades are designed in parallelogram structure(patented), which can be turned 180°for reuse to increase sewice life.Specialized discharge scraper has been designed according to discharge speed in order to increase productivity.

The movement of the material inside the trough is smooth and continuous.the blades track covers the whole bottom of the trough after a cycle.

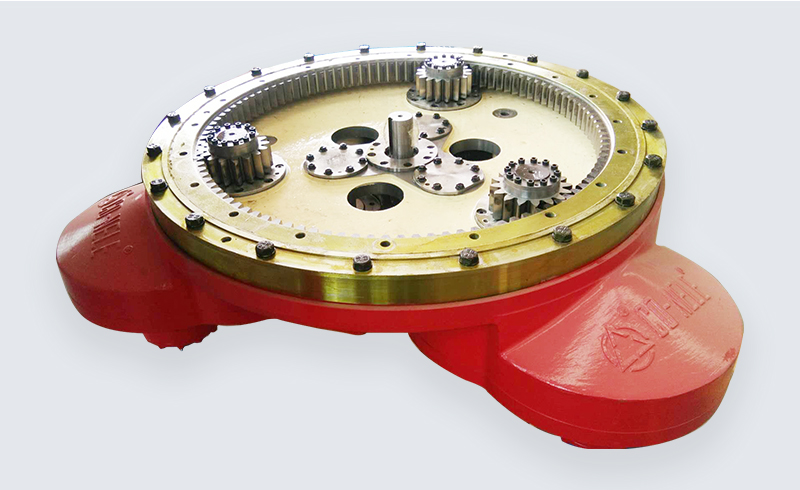

Planetary Gearing

Driving system consists of motor and hardened surface gear which is specialized designed by CO-NELE(patented).

Flexible coupling and hydraulic coupling(option)connects motor and gearbox.

The gearbox is designed by CO-NELE (completely independent intellectual property rights owned) absorbing European advanced technology. The improvedmodel has lower noise,longer torque and more durable.

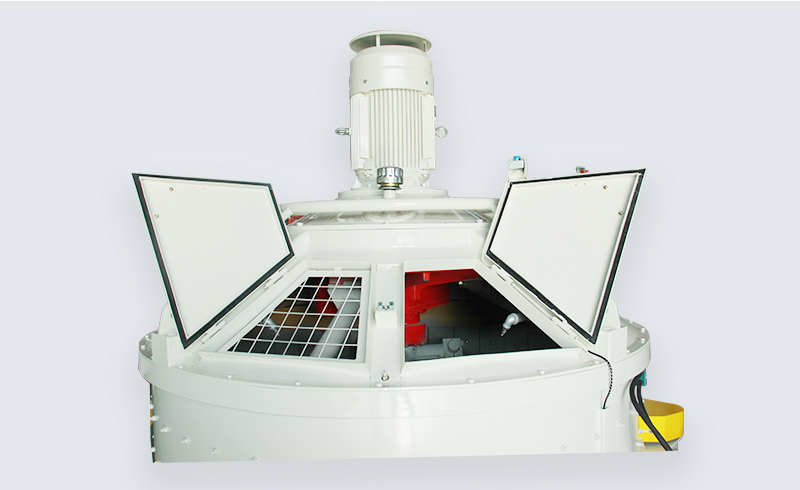

Observing Port & Maintaining Door

There is an observing port on the maintaining door. You can observe the mixing situation without cutting off power.

In order to improve the security of using the product,reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient.

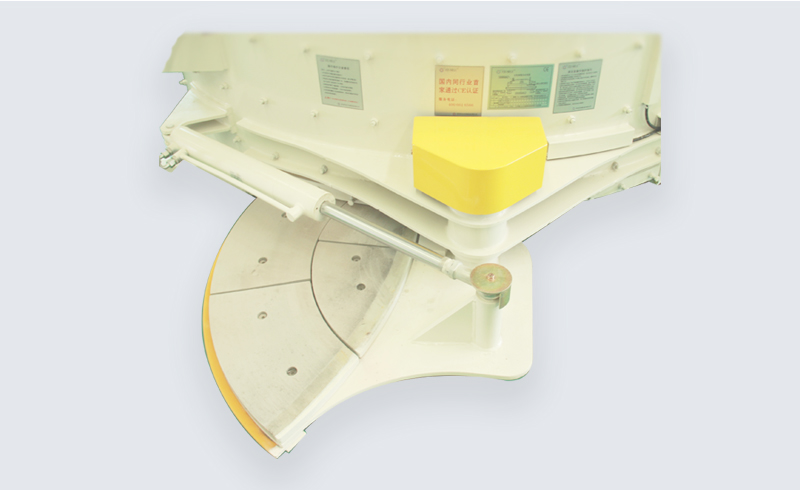

Hydraulic Discharge Door & Pneumatic Discharge Door

According to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic or by hands.

The number of the discharging door is three at most. And there is special sealing device on the discharging door to ensure the sealing reliable.

Featured Industry Solutions

Shaped Products
Press bodies for all types of bricks, including as hot mixtures.
Bodies for insulating firebricks.
Granules for isostatically pressed products.
Unshaped Products
Dense vibratable masses, casting slips, ramming mixtures, and spraying mixtures
Thermal insulation mixtures
Mortar and putties
Dry mixes
Prefabricated Parts
Special Materials
Mixtures and granules for oxide and non-oxide ceramic materials.
Mixtures for ceramic fiber materials.

Refractory
Refractory castable
Refractory brick
High aluminum castable
Refractory mud
Magnesium carbon brick
Castable
Sagger
