After 26 years of industry accumulation, CO-NELE has obtained more than 50 national technology patents and more than 6,000 mixers. It has become the most comprehensive professional mixing company in China.

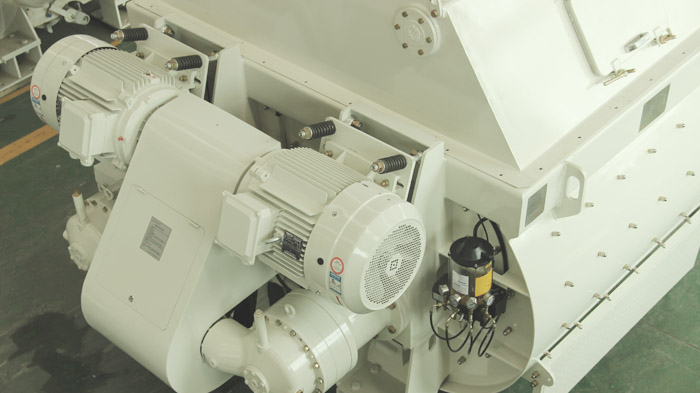

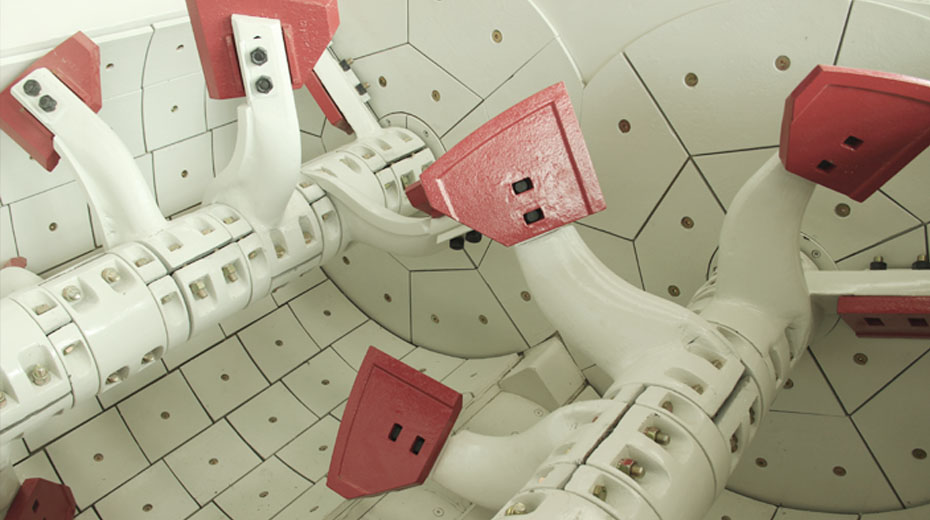

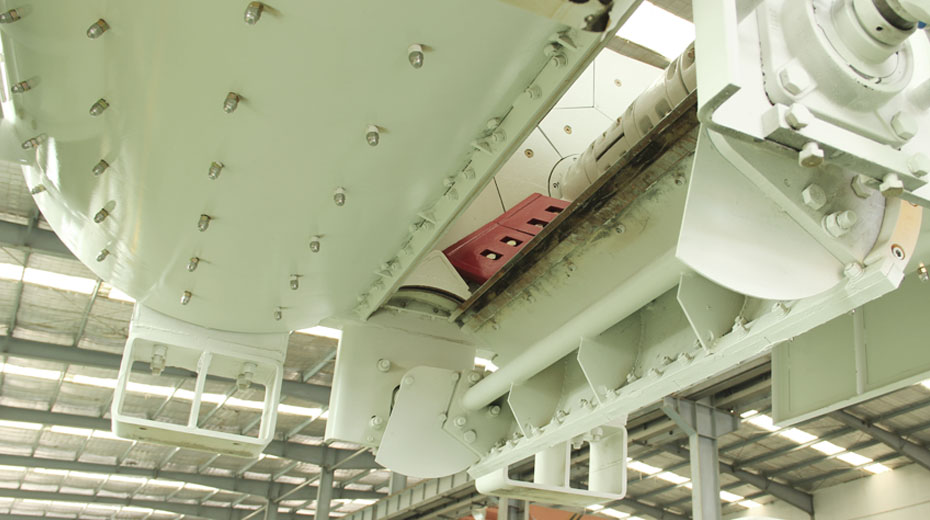

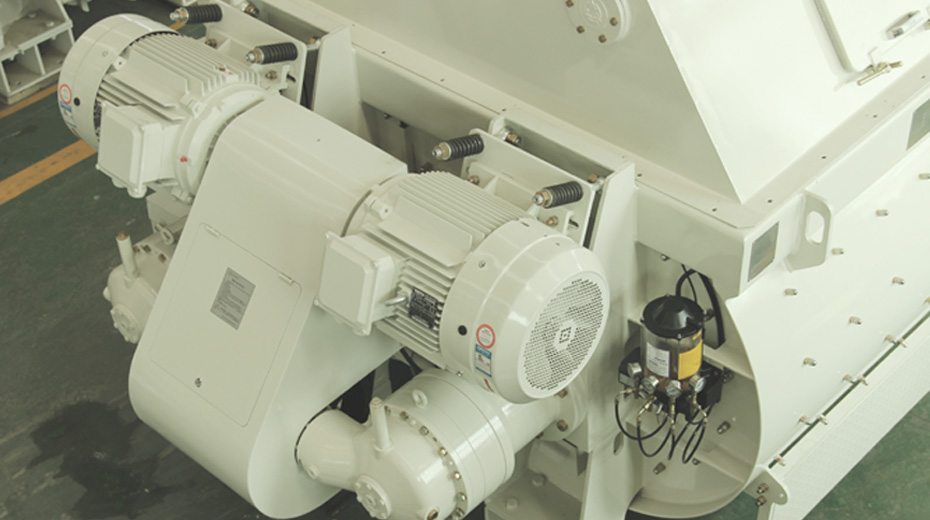

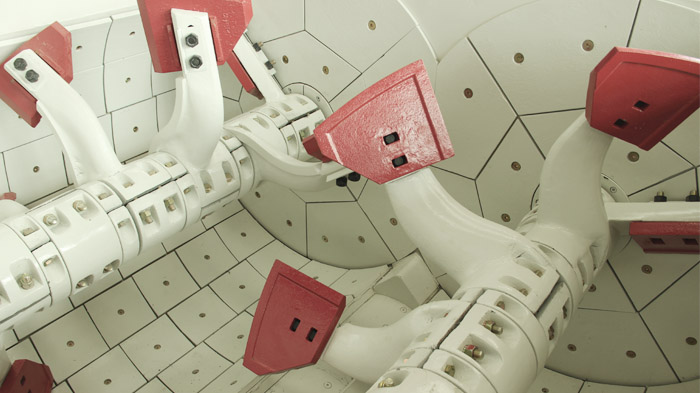

Twin Shaft Concrete Mixer
Twin shaft concrete mixer adopts Germany and Italy European technology used for producing and mixing concrete, which is widely used by all over the world. It is not only applies in common concrete, mix dry-hard concrete, wet concrete,precast concrete but also in high performance concrete.
It is applicable for large/medium-scale construction projects, such as high-speed railway, hydropower construction, large&medium scale prefabricated factory,airport, road,highway, bridge, etc, and production of high-quality concrete.
Type Of Twin Shaft Concrete Mixer
| Type | CHS750 | CHS1000 | CHS1250 | CHS1500 | CHS2000 | CHS2500 | CHS3000 | CHS3500 | CHS4000 | CHS4500 | CHS5000 | CHS6000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| In capacity(L) | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 5250 | 6000 | 6750 | 7500 | 9000 |
| Out capacity(L) | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | 6000 |
| Arms | 2x4 | 2x5 | 2x5 | 2x6 | 2x6 | 2x7 | 2x8 | 2x9 | 2x9 | 2x10 | 2x11 | 2x12 |
| Mixer power(kw) | 30 | 37 | 22x2 | 30x2 | 37x2 | 45x2 | 55x2 | 55x2 | 75x2 | 75x2 | 90x2 | 110x2 |
| Discharge power(kw) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 43 | 3 | 3 | 3 | 3 |
| Weight(kg) | 4200 | 4500 | 5000 | 5400 | 8100 | 8500 | 8900 | 9500 | 12000 | 14000 | 16000 | 18000 |
