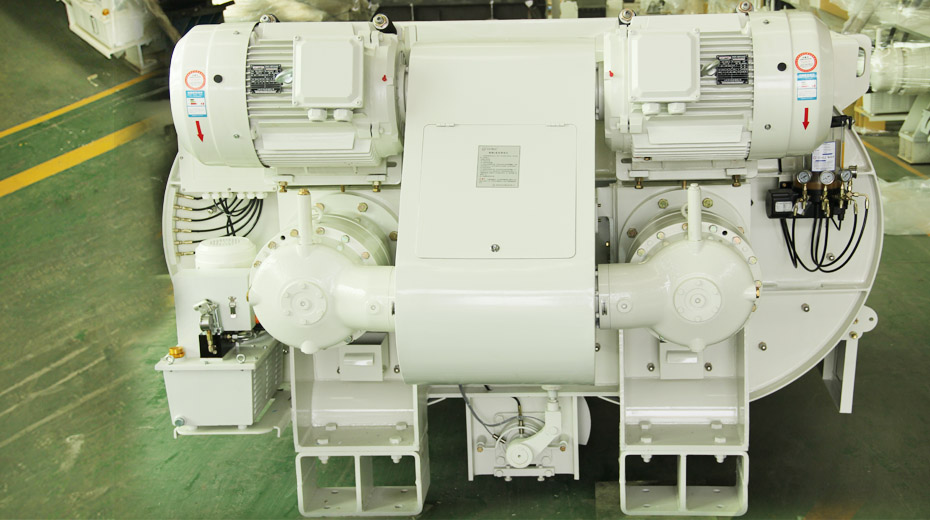

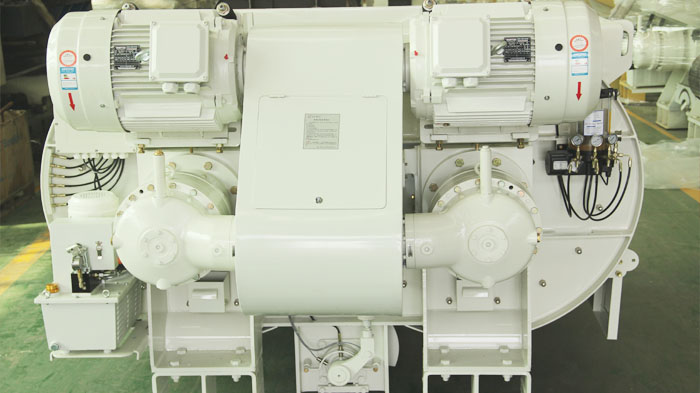

Twin spiral concrete mixer
Twin spiral concrete mixer spiral belt arrangement, the efficiency is increased by 15%, energy saving is 15%, and material mixing uniformity is high.
Adopt large-pitch design concept to reduce running resistance, reduce accumulated materials and reduce the inter-axis rate.
The large side of the scraper covers 100% of the scraped material and there is no accumulation.

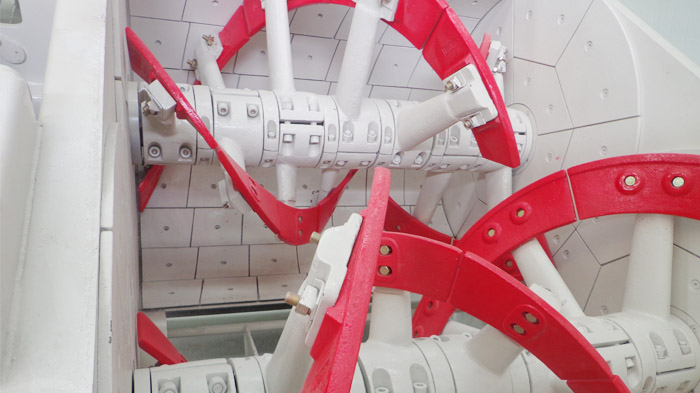

The mixing blade has small type, convenient installation and high versatility.

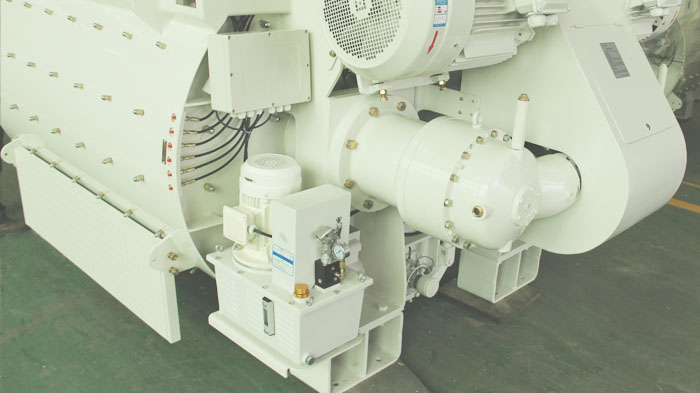

Optional Italian original reducer, German original automatic lubrication pump, high pressure cleaning device, temperature and humidity test system.
After 15 years of industry accumulation, CO-NELE has obtained more than 50 national technology patents and more than 5,000 mixers. It has become the most comprehensive professional mixing company in China.

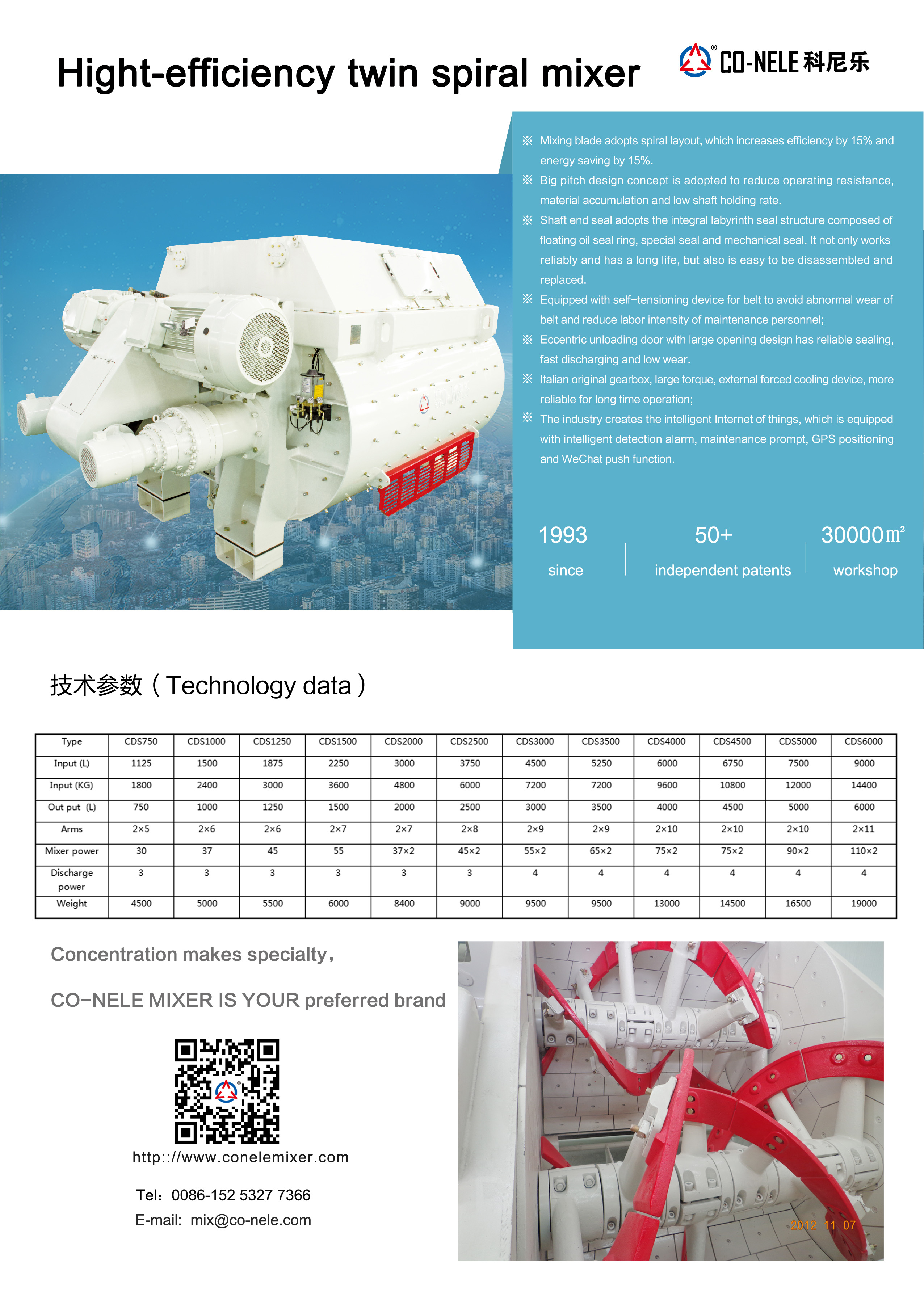

Type Of Twin spiral concrete mixer
| Type | CDS2000 | CDS3000 | CDS4000 | CDS4500 | CDS5000 | CDS6000 |
|---|---|---|---|---|---|---|
| In capacity(L) | 3000 | 4500 | 6000 | 6750 | 7500 | 9000 |
| Out capacity(L) | 2000 | 3000 | 4000 | 4500 | 5000 | 6000 |
| Arms | 2x7 | 2x9 | 2x10 | 2x10 | 2x10 | 2x11 |
| Mixer power(kw) | 37x2 | 55x2 | 75x2 | 75x2 | 90x2 | 110x2 |
| Discharging power(kw) | 3 | 4 | 4 | 4 | 4 | 4 |
| Weight(kg) | 8400 | 10100 | 13500 | 15500 | 17500 | 20000 |
