Dry Mortar Mixer
1. Horizontal mixer The mixing speed is very fast and the mixing time of each betch is 3 to 5 minutes. Besides, the mixing uniformity is high.
2. There won’t be aliquation during mixing when the physical property of the material with different density, granularity, shape,etc.
3.The power consumption per ton is not much, 60% lower than that of common horizontial spiral ribbon mixer.

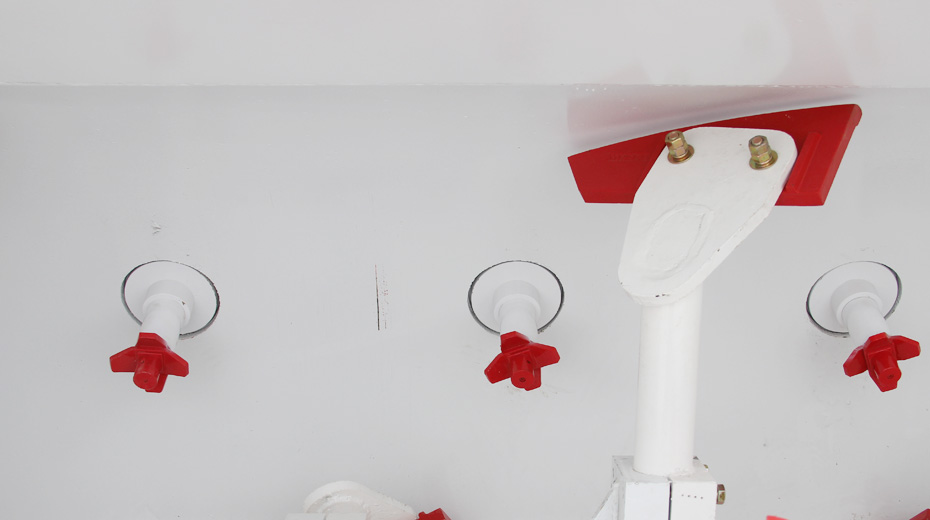

4.High-speed rotary fly cutter unit, which can be addtionally fixed on the mixer, can scatter fibrous materials in a fast and efficient way.

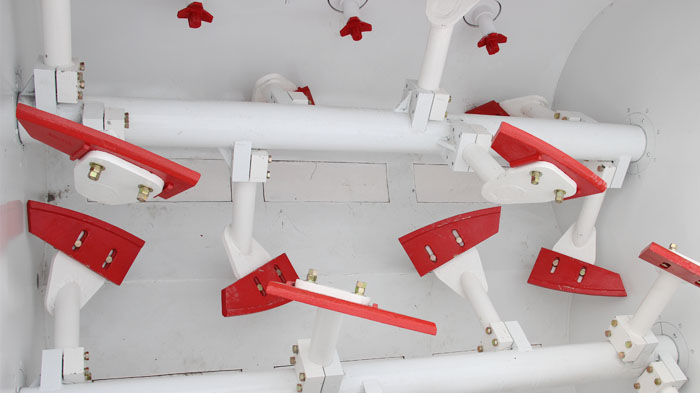

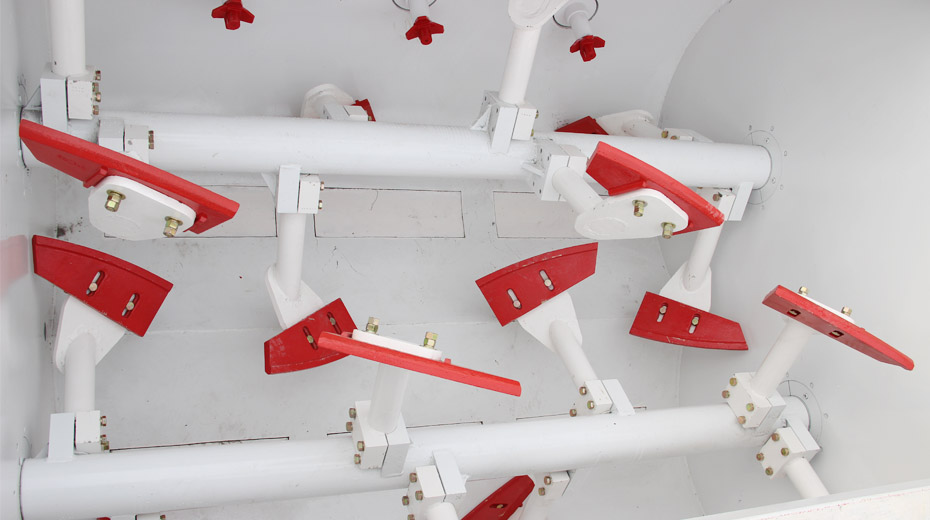

5. dry mortar powder mixer has a wide application range. Double shaft mixer can be made of carbon steel, semi-stainless steel and full-stainless steel according to the requirements of customers and it is especially applicable for the mixing of highly-precise materials.
Dry Mortar Mixer is widely used for mixing chemical materials, pharmacy, compound fertilizer, rubber, food, building materials, milk powder, health care products, fodder, additive, breeding industry, bioengineering, fine chemical engineering, ceramics, fireproofing, rare earth, plastic, puffing , etc.
Type Of Dry Mortar Mixer
CDW means single horizontal shaft mortar mixer

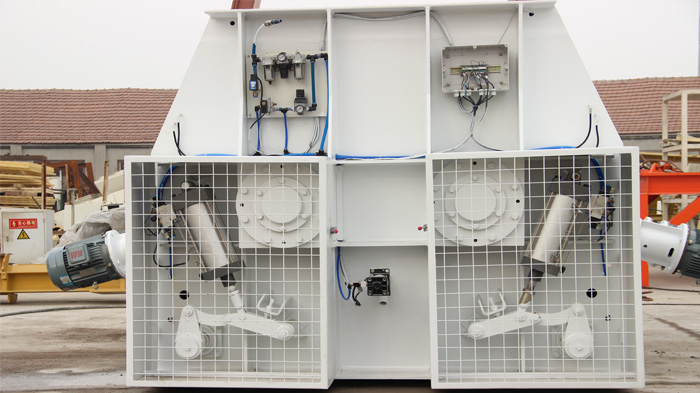

CSW means twin-shaft mortar mixer
| Type | CDW1200 | CDW2000 | CDW3000 | CSW4000 | CSW6000 | CSW8000 | CSW10000 |
|---|---|---|---|---|---|---|---|
| Total capacity(L) | 1200 | 1200 | 3000 | 4000 | 6000 | 8000 | 10000 |
| Working capacity(L) | 480-720 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |

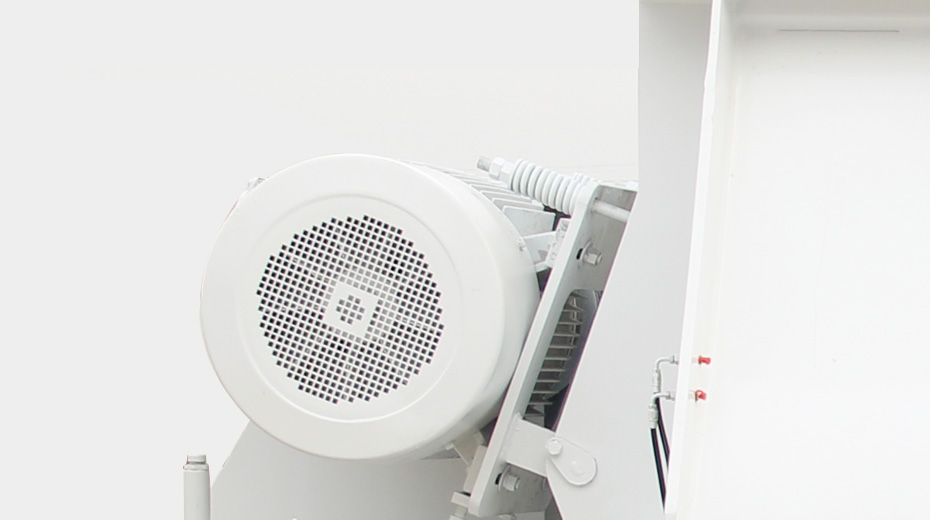

| Mixing power（Kw） | 22 | 37 | 55 | 30x2 | 37x2 | 55x2 | 65x2 |
| Agitator number | 2 | 2 | 3 | 4 | 6 | 6 | 6 |
| Agitator power (kw) | 4x2 | 4x2 |
4x3 |
4x4 | 4x6 |
4x6 |
4x6 |
