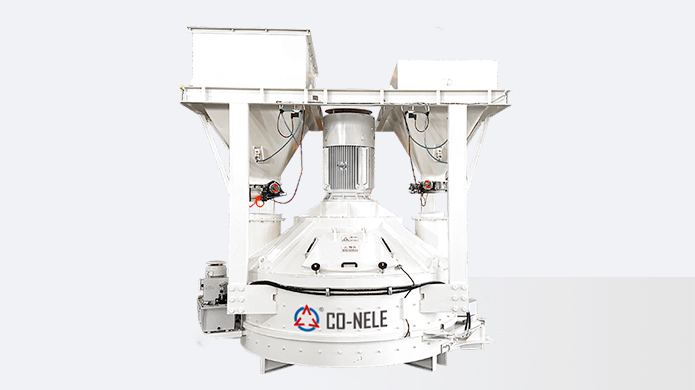

Product Introduction: Planetary Variable-Frequency Rotor Sand Mixer
The planetary rotor sand mixer is a high-performance, versatile mixing system designed for sand preparation in foundry applications, including the production of sand molds and cores. It is widely applicable to casting processes for materials such as cast iron, steel castings, and aluminum alloys.
Particularly suited for manufacturing high-precision, high-strength sand molds, its defining innovation is the integration of planetary motion mechanics and variable-frequency drive technology.
This combination enables precise control over mixing intensity and speed, ensuring thorough homogenization of sand, binders, and additives.
The result is superior mold quality with minimized defects, optimized production efficiency, and reduced material waste.
Type Of Planetary Rotor Sand Mixer
Sand mixing efficiency: 26 batches/hour
| Type | Drum diameter(mm) | Mixing power(kw) | In capacity(Kg) | High-speed Rotor Speed (r/min) | Low-speed Mixing Speed(r/min) | Revolution Speed (r/min) | Production Capacity (t/h) |
| CMPS330 | 1500 | 30 | 400-600 | 240 | 45 | 20 | 10-13 |
| CMPS500 | 1800 | 45 | 800-1000 | 240 | 45 | 20 | 20-25 |
| CMPS750 | 2200 | 75 | 1400-1500 | 240 | 45 | 20 | 35-38 |
| CMPS1000 | 2500 | 90 | 1700-2000 | 240 | 45 | 20 | 45-50 |
| CMPS2000 | 3000 | 132 | 2600-3000 | 240*2 | 45 | 20 | 65-75 |
| CMPS3000 | 3500 | 160 | 3500-4000 | 240*2 | 45 | 20 | 90-100 |
