This twin independent 2m³ planetary mixer system is professional offshore vessel UHPC mixing equipment, fully customized, designed and manufactured by CO-NELE for the Haiji Marine offshore construction project. The ship-mounted UHPC mixer set adopts two complete standalone 2m³ planetary mixers arranged symmetrically on the workboat deck, solving stable UHPC mixing difficulties under salt fog, hull rolling and limited offshore maintenance conditions.Different from single mixer with dual motors, each 2m³ planetary mixer is an independent host with separate drive, lubrication and PLC control system. The twin planetary mixer system realizes full mutual backup, becoming reliable core equipment for Haiji Marine’s offshore wind foundation pouring, marine platform reinforcement, underwater pier repair and immersed tube joint UHPC grouting.
Technical Parameters
Mixer Model: CO-NELE custom twin independent 2m³ planetary mixer for offshore UHPCSingle Batch :Output 2m³ per planetary mixerSingle Drive Power :37kW (45kW upgrade for heavy UHPC mixing)Dual Synchronous :Hour Output 28–40m³/h high capacity ship-mounted UHPC productionOperation Mode :Dual synchronous / single standby twin planetary mixer working modeMixing Type High-shear :planetary mixing for steel fiber reinforced UHPCFiber Mixing Range: 2%–3% steel fiber, no agglomeration for marine UHPCCO-NELE Customized Advantages for Haiji Offshore UHPC Project
Full Redundancy Twin Planetary Mixer Design, Zero Offshore Shutdown
As customized demand of Haiji Marine, CO-NELE equips every 2m³ planetary mixer with independent transmission, lubrication and control loop. When one ship-mounted UHPC mixer fails, the second unit can run continuously without stopping offshore pouring construction, greatly cutting downtime loss for marine engineering projects. Small repair works can run single mixer to save energy consumption.

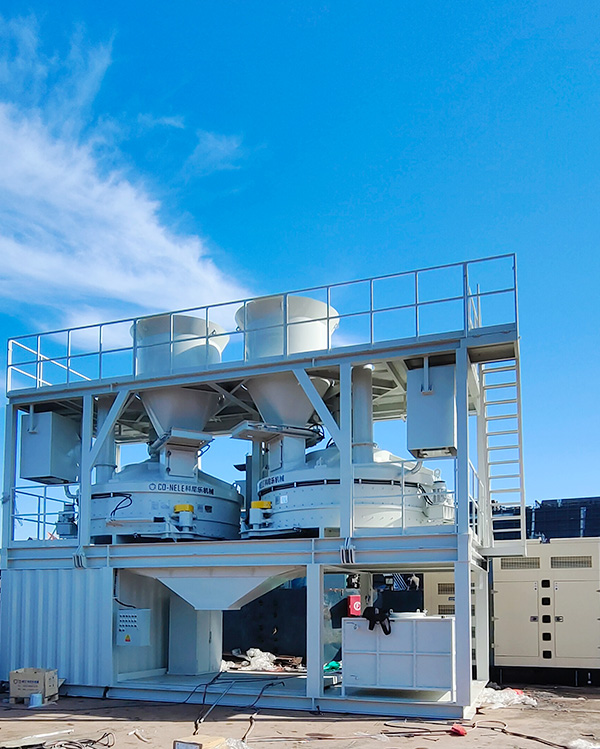

Symmetric Layout Matched Haiji Workboat Deck Load
The twin independent 2m³ planetary mixer system uses balanced side-by-side layout, specially optimized for Haiji’s offshore vessel deck bearing size:Low center of gravity structure prevents overturning when ship rollingHeavy shock absorption brackets & full welding base for ship deck installationEven weight distribution reduces deck torsion stress in sea conditionsMarine Salt Fog Anti-Corrosion Package for Long-Term Offshore Service
CO-NELE configured full heavy anti-corrosion structure for this offshore vessel UHPC mixer to resist seawater chloride corrosion:Mixing wear parts: Tungsten carbide coated mixing arms + ceramic lining, durable for high-viscosity UHPC stirringFrame: Hot-dip galvanized + marine heavy epoxy anti-corrosion paintElectric parts: IP56 marine anti-salt motor, 316L stainless control cabinet, sealed marine cablesHigh-Quality Steel Fiber UHPC Mixing Performance
CO-NELE proprietary planetary high-shear mixing technology eliminates dead mixing zones. This twin planetary mixer system evenly disperses 2%–3% steel fiber, stable mixing low water-binder ratio marine UHPC, meets Haiji’s strict durability standard for offshore infrastructure. Intelligent PLC Control for Twin 2m³ Planetary Mixer System
Central PLC system supports independent UHPC formula storage for each mixer, real-time monitor temperature, vibration and load data, one-click switch dual/single operation mode, complete running log for marine project quality tracing.Complete Turnkey Ship-Mounted UHPC Batching Plant by CO-NELE
Matching the twin independent 2m³ planetary mixer, CO-NELE supplied full batching station for Haiji offshore vessel:Horizontal marine powder silos (cement, silica fume) + sealed screw conveyors + dust removalIndependent sealed steel fiber feeding system, anti-moisture caking at seaFloating high-precision weighing system, auto compensate hull tilt for UHPC raw material dosingAdmixture circulation tank, stable water supply, optional marine diesel generator for unstable ship powerWastewater recycling system compliant with offshore environmental protection rulesApplication Scenarios of CO-NELE Offshore Vessel UHPC Mixer
Offshore wind farm foundation UHPC pouring (core application for Haiji Marine)Offshore platform anti-corrosion reinforcementSea bridge, wharf, underwater pier repair & strengtheningImmersed tunnel joint UHPC sealing groutingFloating platform, berth marine structural renovation
CO-NELE Full Custom Service for Offshore UHPC Mixer Projects
Custom CAD layout drawing according to customer offshore vessel size & deck loadAdjustable power, anti-corrosion grade and weighing precision for different marine UHPC projectsOnsite installation, commissioning and operator training for ship crewLong-term original spare parts & remote after-sales support for planetary mixer equipmentCTA Inquiry SectionDo you need custom offshore vessel UHPC mixer like the Haiji Marine twin 2m³ planetary mixer system? Send your vessel parameters, hourly output demand and UHPC formula details. CO-NELE will provide professional deck load calculation, customized layout drawing and factory direct quotation rapidly.
